SUPERSEAL Dimpled Membrane Installation

SUPERSEAL DIMPLED FOUNDATION MEMBRANE is a permanent waterproof barrier that provides drainage and prevents exterior backfill and moisture from touching the wall. It can be used as a protection board for SUPERSEAL Waterproof Coatings to provide that EXTRA layer of waterproofing protection for your home.

– For use on all types of foundations including Concrete, Insulated Concrete Forms (ICF), Block, and wood.

– The “Air Gap” created by SUPERSEAL Dimpled Membrane provides a drainage space that allows the wall to breathe while removing 100% of the hydro-static head water pressure off the face of the wall.

– The Dimpled Membrane is mechanically fastened with allows the wall to shift settle and crack without affecting the membrane’s amazing performance.

CLICK FOR MORE



FOUNDATION WATERPROOFING

MULTI USE / MULTI-SURFACE

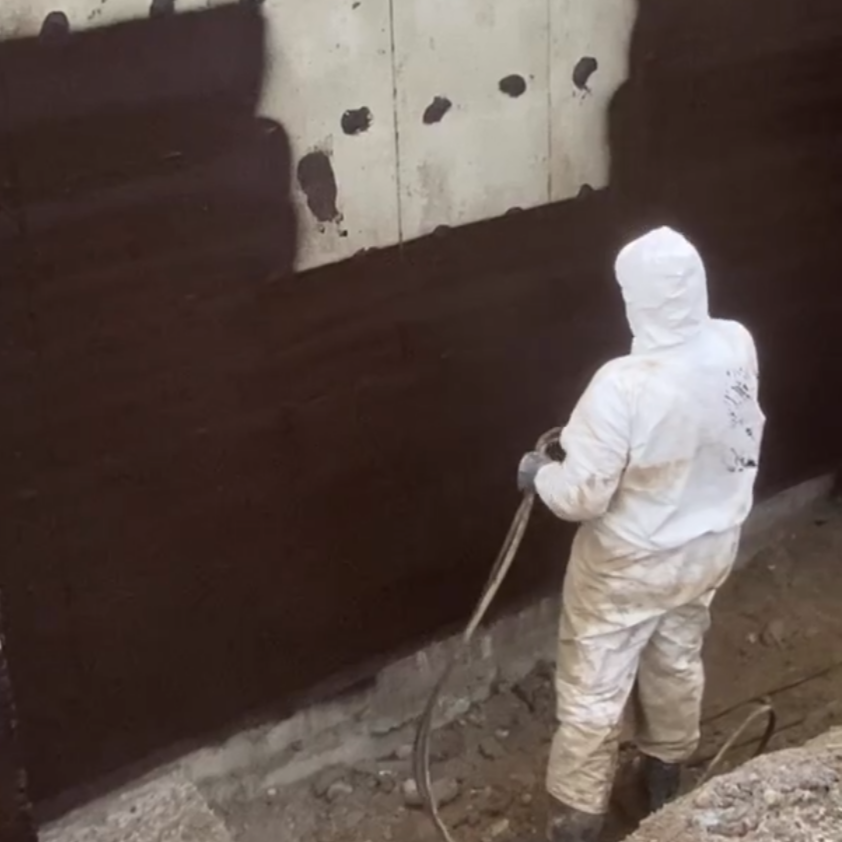

SUPERSEAL Foundation Waterproof Sealant is an instant-set spray or roller applied highly elastic, rubberized, waterproof membrane.

– For use on all types of foundations including Concrete, Insulated Concrete Forms (ICF), Block, and wood.

– Residential & commercial applications

– Can be used to patch tie-holes, honeycombs or most other surface imperfections.

CLICK FOR MORE

Do Foundations Crack? How to Protect Your Home.

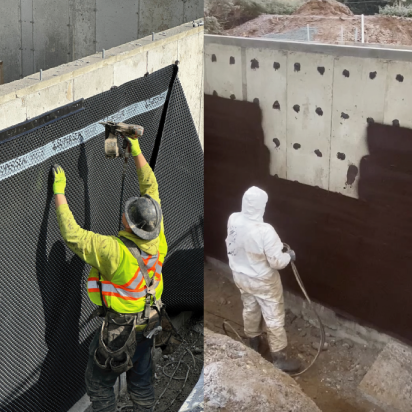

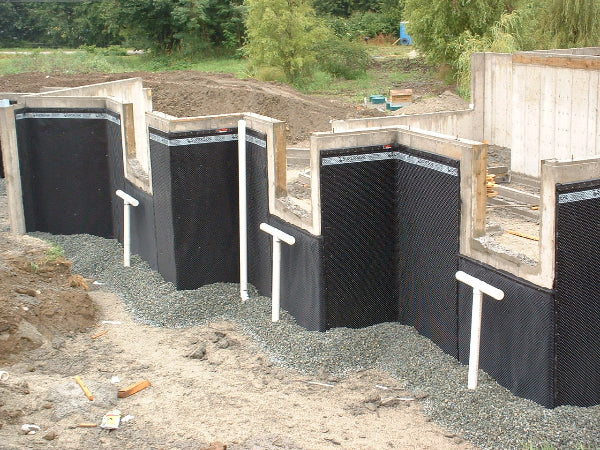

SUPERSEAL Dimpled membrane on a concrete foundation
Foundation Waterproofing with SUPERSEAL Dimpled Membrane on a concrete foundation

Concrete foundations crack and it’s perfectly normal. In fact over 60% of concrete foundations could experience a minor crack in the first year.

Why do foundations crack? The major reason is concrete shrinkage and settling. A foundation is under enormous pressure from the earth and hydro-static head-water pressure from the water in the surrounding soils. Your waterproofing must protect any potential cracks in your foundation for many years to come.



SUPERSEAL Dimpled Membrane bridges typical wall crack with ease and never allows the backfill material to touch the foundation or the Waterproof Coating. The dimples create a 8mm (5/16”) Air Gap between the wall the back of the membrane. This allows the foundation breathe and drain away any water into the perimeter drain.

SUPERSEAL Dimple Membrane is available in various roll sizes to fit your needs.

Insulated Concrete Forms (ICF)

SUPERSEAL Dimpled Membrane on an ICF
SUPERSEAL Dimpled Foundation Membrane on an ICF

SUPERSEAL Dimpled Membrane and SUPERSEAL Foundation Waterproof Sealant provide maximum protection for your insulated concrete forms.



When you waterproof your ICF with SUPERSEAL you can rest easy with the peace of mind that your foundation has the ultimate in foundation waterproofing.

Click for more on ICF’s

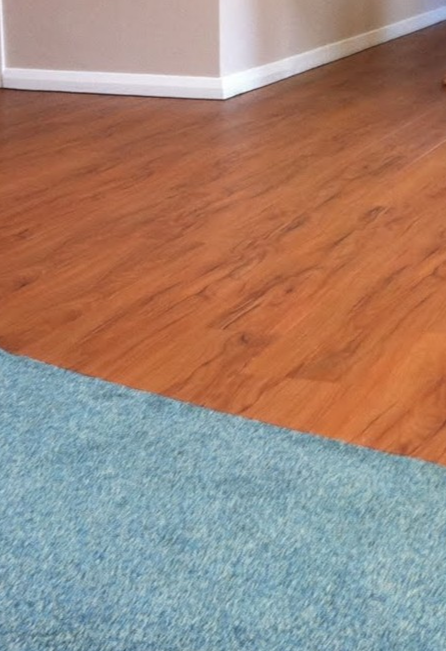

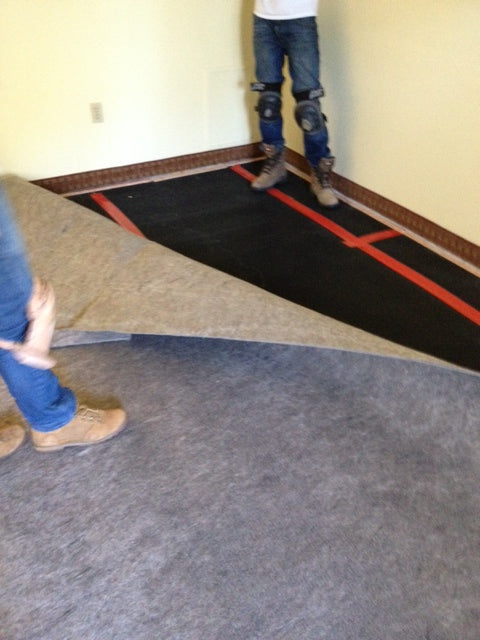

Double Dimpled Carpet & Laminate Subfloor

SUPERSEAL Double Dimple Carpet & Laminate Subfloor
SUPERSEAL Double Dimple Carpet & Laminate Subfloor

More and more builders in new home construction and renovations projects are installing a subfloor under or over existing concrete floors. Not only does a subfloor raise the value of your home but it also improves the basement living space.

Typically in the past, builders would install plastic sheeting and fasten wood slats on the concrete and cover with plywood. After a period of time, basement moisture could absorb into the insulation causing mould and mildew, creating an unhealthy environment.

SUPERSEAL Carpet & Laminate Subfloor’s unique  double dimple design, provides an airspace above and below the plastic membrane. This allows both sides of the flooring to breathe independently and keeping moisture out.



Click here for more

Why You Should Insist on CCRR, CCMC &  ICC Evaluations.

CCMC, ICC & Intertek Logos

All SUPERSEAL Products go through independent 3rd party testing to ensure the highest standards for building code compliance.



Code Compliance Research report (CCRR) demonstrates to code officials, engineers, architects and industry that your product complies with the applicable code requirements. Intertek’s ETL Mark is one of the most trusted and utilized marks in North America. This mark represents to code officials, architects, and the industry, that your product meets the relevant code requirements through rigorous testing, evaluation, and on-going, verification of compliance



The Canadian Construction Materials Centre (CCMC) assess compliance with Canadian building, energy, and safety codes. CCMC is the only code compliance service for construction products supported by the federal government of Canada. It is trusted by over 6,000 regulators across Canada.



The International Code Council (ICC) is the largest international association of building safety professionals that establish a level playing field for builders and manufacturers.

The ICC develops international codes and standards that apply to product evaluation, accreditation, certification, codification, training, and technology.



SUPERSEAL Dimpled Membrane & SUPERSEAL Foundation Waterproof Sealant surpassed the testing of CCRR, CCMC, and ICC.
